Manhole box KSECK

Manhole box KSECK

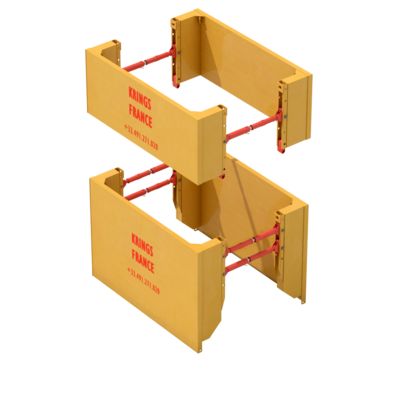

KSECK trench box for quick Manhole Construction using trench box installation technique. It is the perfect complement for standard monobloc trench box such as light KVL, KS60 and KS100. The U-form design of the plate body have a thickness of 0,50 m. Thus, a 1,00m wide Manhole is formed. This box could be used for pump station jobs or special tanks for separate waters.

The Base Box can be used up to  ~5,00m deep with two Extension boxes on top.

Specifications
Unit length 2.00 m - 3.50 m
Height base box 2.40 m
Height top box 1.40 m
Pipe clearence Max. 1.54 m
Weight 1730 kg - 2330 kg
Depth recommended Up to 4.00 m
Handling machine Excavator ≈ 12 - 18 tons
